Dog Snacks Molding Machine

Share

Molded Pet Snacks Equipment is special machinery for producing pet snacks.

Dog Snacks Molding Machine is an innovative and efficient piece of equipment designed specifically for the production of various shapes and sizes of dog treats and snacks. This machine ensures that pet food manufacturers can produce high-quality, consistent, and safe products for pets to enjoy.

Key Features

  1. Customizable Molds: The molding machine comes with a selection of pre-designed molds and can also be customized to create unique shapes and sizes according to your brand's requirements.

  2. High Efficiency: The machine is equipped with an advanced extrusion system, allowing for the production of large quantities of dog snacks in a short period.

  3. Versatile Material Compatibility: The machine can process a wide range of ingredients, including meat, fish, vegetables, and grains, allowing you to create a diverse range of dog snack recipes.

  4. Easy-to-Use Control Panel: The user-friendly control panel enables operators to easily set and monitor production parameters, such as temperature, pressure, and speed, ensuring optimal performance.

  5. Sanitary Design: The machine is designed with stainless steel materials and meets strict food safety standards. Its easy-to-clean surfaces ensure a hygienic production environment.

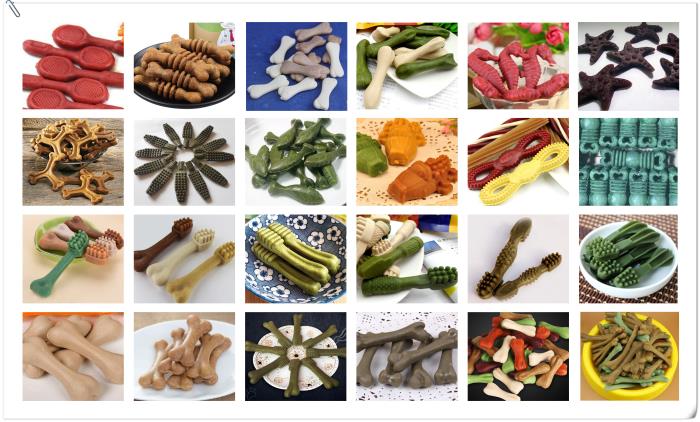

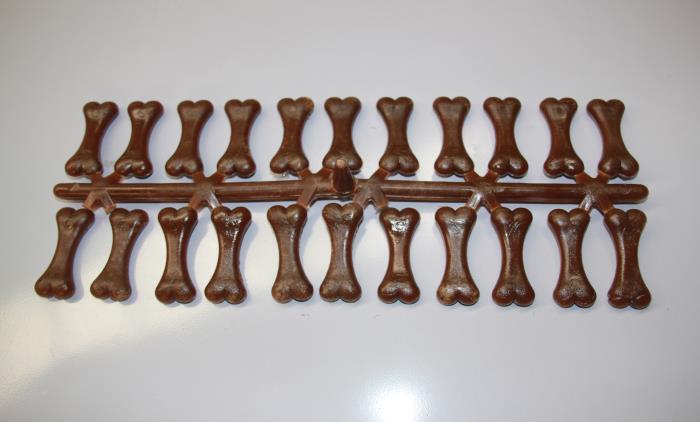

With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc. The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.

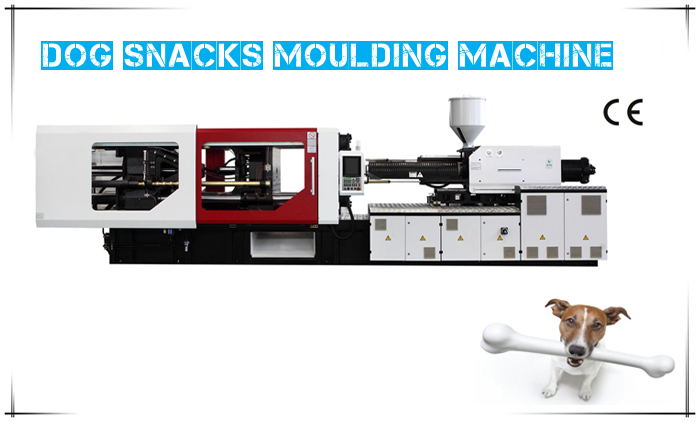

Dog Snacks Moulding Machine

How It Works

The Dog Snacks Molding Machine operates using an extrusion process. Here's a step-by-step overview of how it works:


  1. Ingredient Preparation: Raw ingredients are mixed, ground, and cooked in a suitable mixer or cooker.

  2. Extrusion: The prepared mixture is fed into the extruder, where it is heated and pressurized. This process transforms the mixture into a dough-like

    consistency.

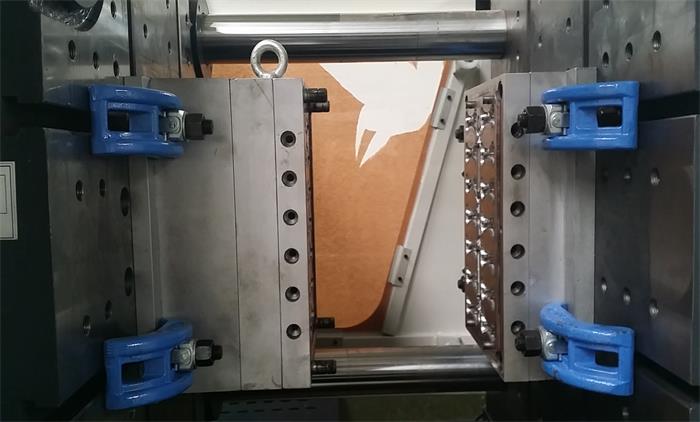

  3. Molding: The dough is then passed through the molding section, where it takes the desired shape and size based on the mold used.

  4. Cutting: The molded dough is cut into individual pieces and, if necessary, further shaped.

  5. Drying/Cooking: The molded snacks are then dried or baked to achieve the desired texture and shelf life.

  6. Cooling and Packaging: The finished dog snacks are cooled and packaged for distribution.


The Dog Snacks Molding Machine is a valuable addition to any pet food production facility, as it provides an efficient and cost-effective solution for creating high-quality, nutritious, and appealing dog treats.


Technical Parameters of Dog Food Machine:


ItemName of item UnitQL-280
Injection unitScrew Diametermm60
Screw L/D RatioRatio18.8
Shot Volumemm707
Shot Weightg636

oz22.4
Injection PressureMpa142
Injection Rateg/s239
Plasticizing Capacityg/s49
Screw Speedrpm180
Clamping unitMould Clamping ForceKn2680
Opening Strokemm540
Space Between Tie-barsmm×mm570×570
Max.Mould Thicknessmm600
Min.Mould Thicknessmm220
Ejector Strokemm130
Ejector ForceKn62
Ejector NumberN9
OthersPump Pressurempa16
Pump Motor PowerKw22
Heating CapacityKw14.7
Machine Dimensions(L×W×H)m×m×m6.1×1.5×2.28
Oil Tank CapacityLiter510

Machine WeightTon9.0
